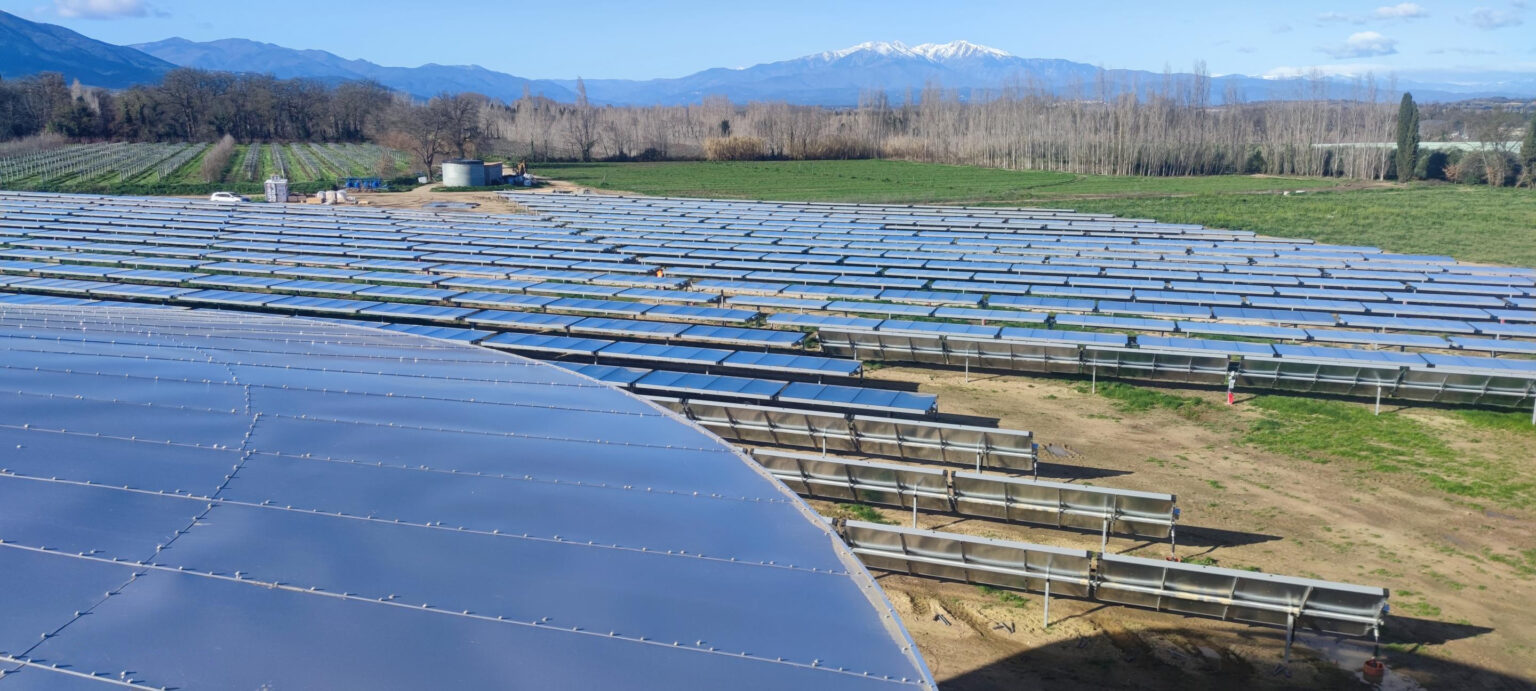

In collaboration with Eiffage Energy Systèmes, Summa Energy is providing a solar thermal plant on trackers to supply heat to the greenhouses of Les Serres Vermeil, an organic vegetable grower located in Palau-del-Vidre, France.
Summa Energy with provide a turnkey solar thermal field of 396 Savo15S collectors, as well as all the engineering of the plant and the supervision software.
Løgumkloster Fjernvarme is a district heating company which annually supplies 35,000 MWh of heat to over 1,500 customers. Heat is produced with a hybrid heating system consisting of a 3 MW pellet boiler, a 1.3 MW hybrid heatpump, a 3 MW absorption heat pump and a solar collector field of 15,300 m2. Additionally, the plant has two gas engines which are capable of producing 7.6 MW of heat and 6 MW of electricity and a 10 MW gas boiler which acts as back-up.
In 2015, Savosolar delivered a 9,700 m2 solar thermal field to Løgumkloster. The second order of 5,600 m2 was delivered and commissioned in the beginning of 2016. The complete field consists of 1030 Savo 15 SG collectors and covers about 20% of the annual thermal energy need of the district heating network. The largest part of the heat demand is covered by the pellet boiler, but Løgumkloster Fjernvarme has plans to change this in the future by extending the solar field and building a large seasonal water storage.
This solar thermal plant, the largest in Europe for industrial process, will deliver on average 4,000 MWh/year of heat. It will cover nearly 32% of the heated water need for the steam generation in the local paper mill. With the very high solar yield – more than 1,000 kWh/m2 – this solar thermal field is the first of its kind in the world due to Savosolar high efficiency solar collectors installed on a single-axis tracking system, manufactured and installed for Savosolar by Arcelormittal, Project Exosun. 66 tilting structures, each carrying four 16 m2 collectors, follow the sun from morning to evening and maximize the heat production.
The project was developed and financed by NewHeat and Savosolar acted as the EPC contractor. Meaning, Savosolar designed the whole system, delivered the solar collectors, and realized the installation with local French companies. This installation will be a reference for the huge growing market of heat-as-a-service for industrial clients in France and world-wide.
A new forerunner project on the large scale solar thermal market in which Savosolar has been involved: The first solar thermal field with double glasses collectors on trackers. This innovation has been done to optimize the annual solar production with a limited available area. This new solar thermal plant is a property of newHeat and will delivered heat the network of the city of Pons, which is managed by Dalkia.
Savosolar supply on this project consist in the complete solar field field as a turnkey solution, it means, the design, the supply and the installation of the solar collectors and its trackers, as well as the piping, until the solar station. It represents 112 Savo 15 DG-M collectors, which will reduce of 210 tons per year the CO2 emissions for the city’s heat needs.
