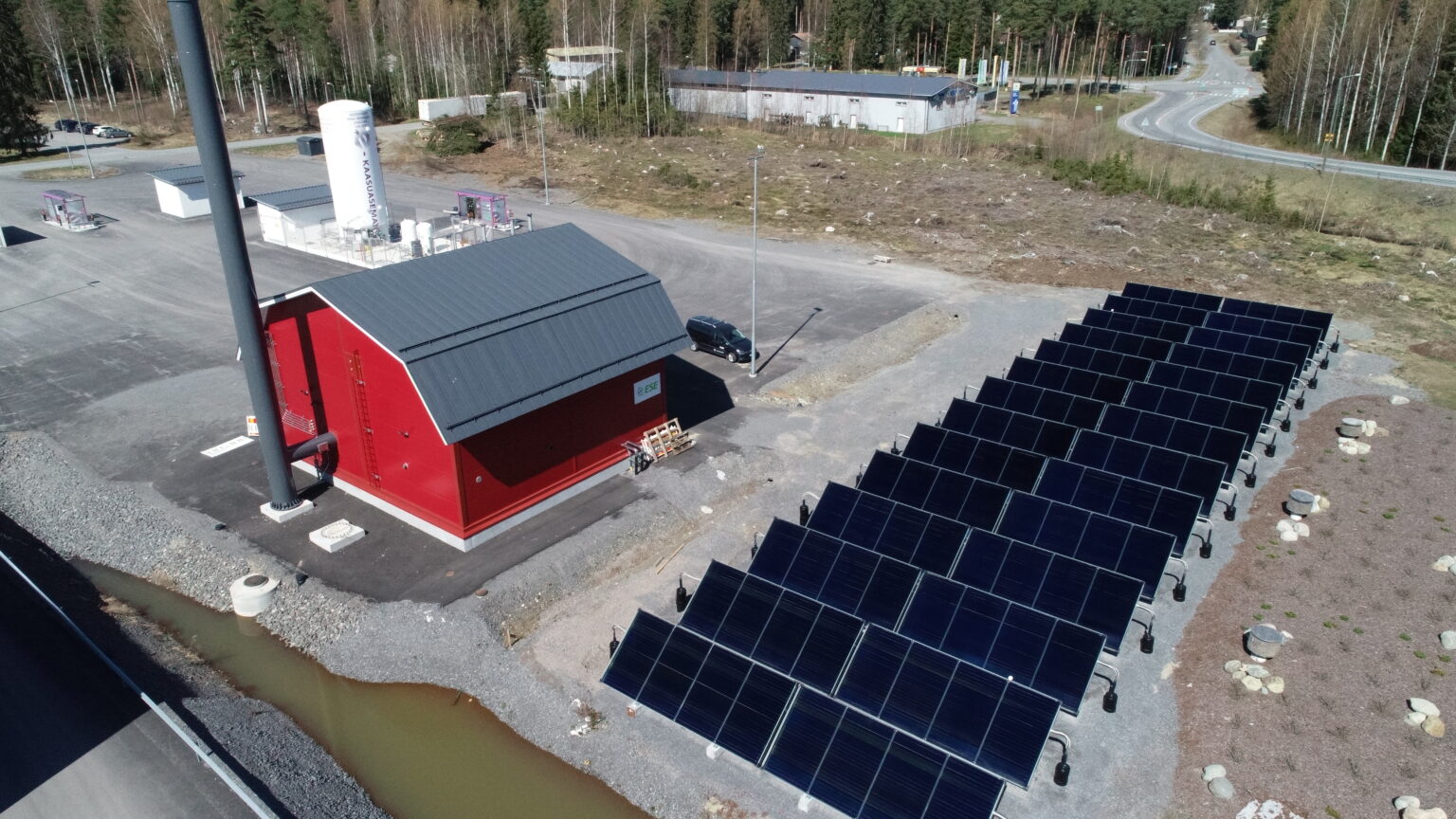

Largest solar thermal plant in Finland
Savosolar has been selected as general contractor to build the largest solar thermal system in Finland to date, on behalf of Etelä Savon Energia Oy for its district heating network, which supplies households with healthy heating. The plant operate as an additional peak load sources during summer season while the main boilers are out of service.
Jelling Varmeværk is a Danish district heating plant in the historical village of Jelling, which is the former home of the Viking Chief Harald Bluetooth. Apart from the 20,125 m² collector field, Jelling Varmeværk produces its energy from a 1 MW wood chip boiler, a 1.5 MW absorption heat pump and 2 gas CHP engines with a total capacity of 8 MW heat and 6 MW electricity.
The first solar system was commissioned in summer 2016 and during its first week of operation, the collector field set a new Danish record by producing nearly 5 kWh/m² in a day.
The collector field in Jelling has double stanchions which allows for two collector rows to connect to one and the same pipe and thereby save costs and thermal losses. The annual solar thermal production is about 11,200 MWh, which covers over 25% of the town’s energy need for heating.
In 2018, Jelling Varmeværk placed a second order with Savosolar for the 4,836 m² extension of the successfully running existing collector field. The extension will be installed in first half of 2019 and it will further grow the fraction of district heating produced with solar energy.
“We chose Savosolar as our collector supplier due to their high efficiency in combination with their innovative solutions. They enable us to have an environmentally friendly, stable and low price for heating over the next 20 years. Collectors have integrated hose connections which means that they disturb the landscape as little as possible in an historic village of Jelling. The collectors can also follow the curvature of the landscape which means that we didn’t have to level out the ground of the field.”
This solar thermal plant, the largest in Europe for industrial process, will deliver on average 4,000 MWh/year of heat. It will cover nearly 32% of the heated water need for the steam generation in the local paper mill. With the very high solar yield – more than 1,000 kWh/m2 – this solar thermal field is the first of its kind in the world due to Savosolar high efficiency solar collectors installed on a single-axis tracking system, manufactured and installed for Savosolar by Arcelormittal, Project Exosun. 66 tilting structures, each carrying four 16 m2 collectors, follow the sun from morning to evening and maximize the heat production.
The project was developed and financed by NewHeat and Savosolar acted as the EPC contractor. Meaning, Savosolar designed the whole system, delivered the solar collectors, and realized the installation with local French companies. This installation will be a reference for the huge growing market of heat-as-a-service for industrial clients in France and world-wide.
As a general contractor, Savosolar built a solar thermal system on behalf of Fernwärme Ettenheim GmbH for the largest possible solar feed-in into the existing district heating network. 112 pieces Savo 15 SG-M large collectors generate fuel-free healthy heat, which is temporarily stored in two 100 m³ buffer storage tanks.
This also allows the operating hours of the CHP and the biomass boiler to be optimized. The scope of delivery included the fence and video surveillance system, as well as the creation of a meager meadow to enrich local biodiversity.
The construction work was temporarily interrupted due to the COVID19 restrictions. All system hydraulics were completely housed in a container. The keys were handed over in October 2020.
A PV system still to be built on the east side will generate the electricity for the pumps in the future.
The picture on the left shows the boiler house and the buffer storage tank. Handover of keys from Jari Varjotie, CEO Savosolar Oyj, to Peter Blaser, managing director of the customer.
