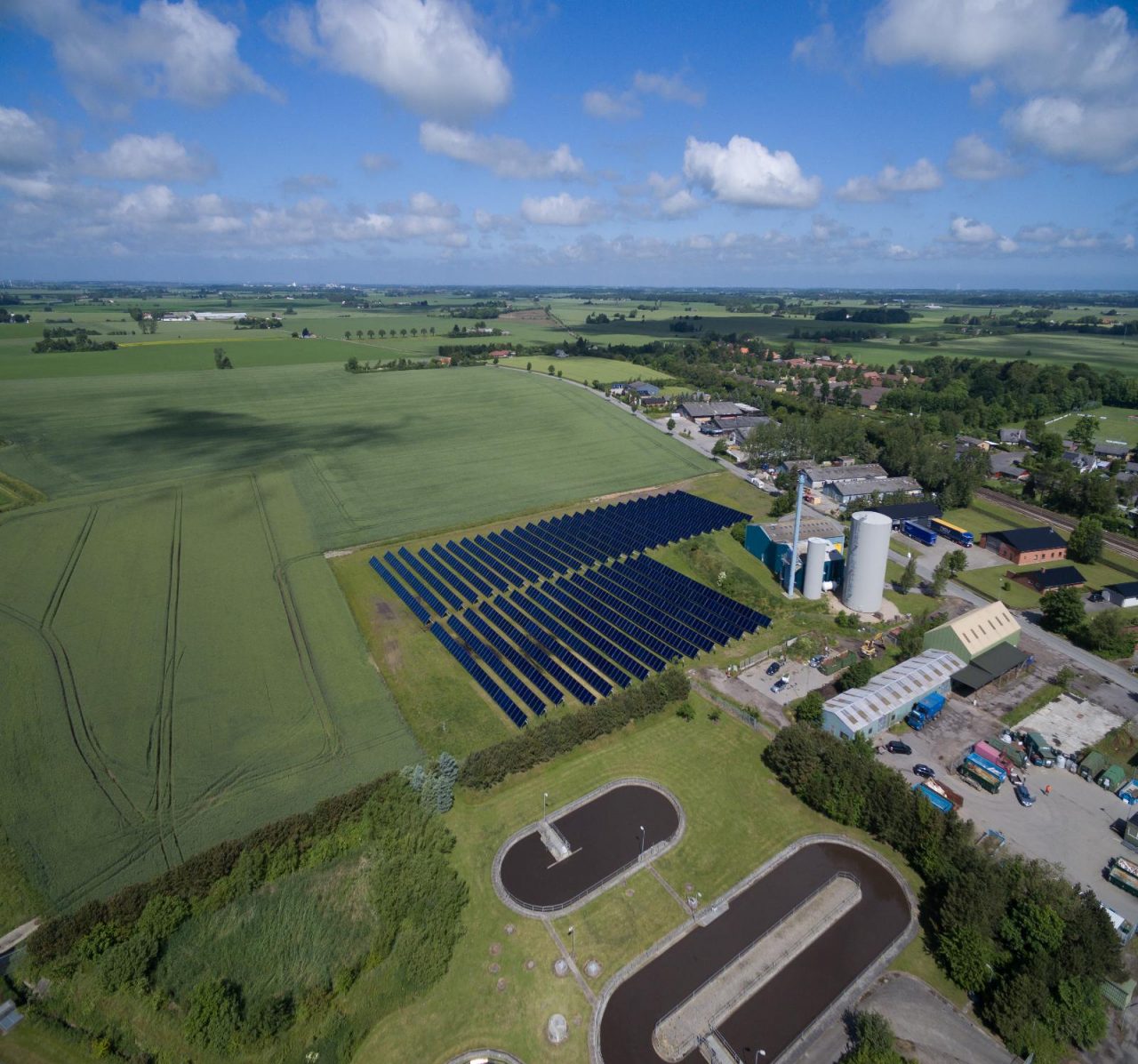

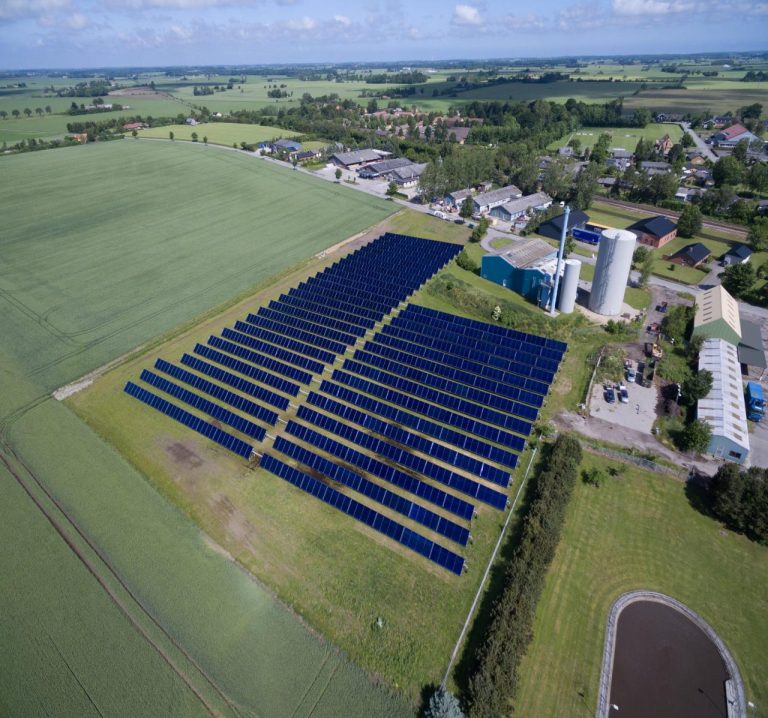

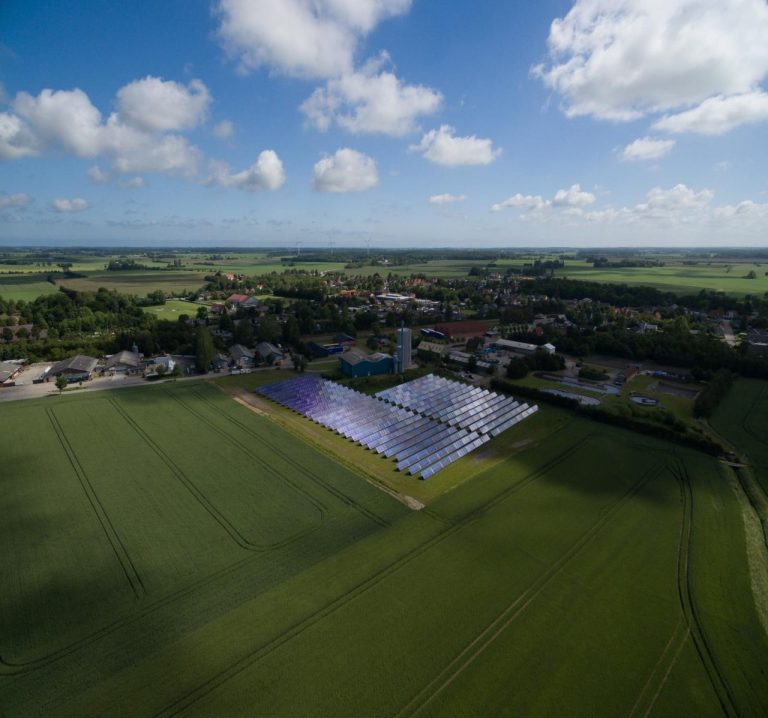

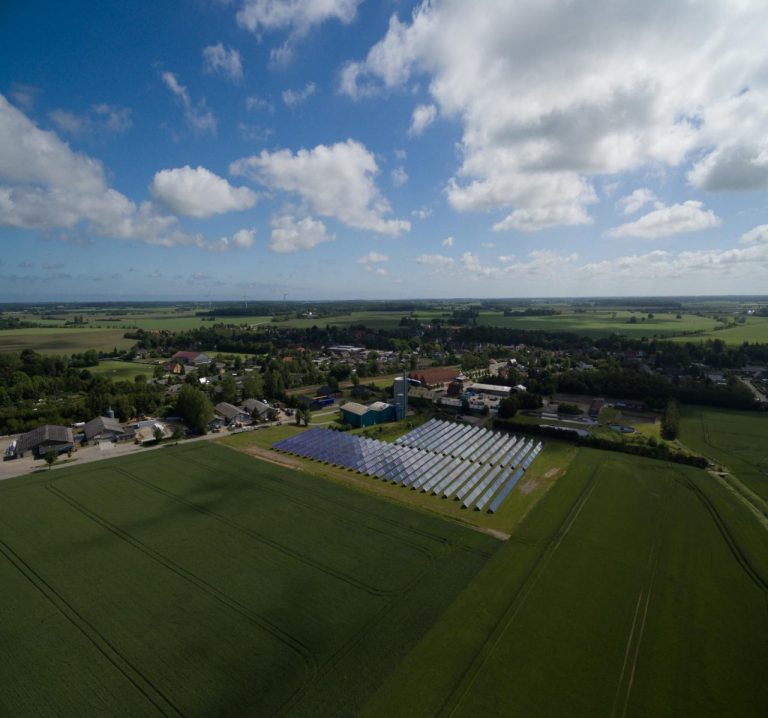

Lolland forsyning’s district heating plant in Søllested is located on the island of Lolland and was the first installation, where Savosolar’s double glazed collectors were used. The double glazing reduces heat losses through the glass side of collector and offers a higher efficiency, especially at higher operation temperature levels and during the darker months of the year. Søllested district heating plant has ca. 500 customers and also uses a 5 MW straw boiler and an oil burner to produce its heat.
The collector field in Søllested has a so-called hybrid field, with both single and double glazed collectors. The single glazed collectors are in the cold end of the collector rows and increase the low temperature as rapidly as possible, while the double glazed collectors are located in the warm side of the collector rows where it is more important to reduce the heat losses.
In Søllested, Savosolar was faced with a special challenge since the customer’s land has a sewerage pipe running through it. Since the owner of the sewer pipe needs to be able to access it in case of maintenance, Savosolar supplied a collector field which both optimised the use of the available land, while still providing access to the sewer pipe
This solar thermal plant, the largest in Europe for industrial process, will deliver on average 4,000 MWh/year of heat. It will cover nearly 32% of the heated water need for the steam generation in the local paper mill. With the very high solar yield – more than 1,000 kWh/m2 – this solar thermal field is the first of its kind in the world due to Savosolar high efficiency solar collectors installed on a single-axis tracking system, manufactured and installed for Savosolar by Arcelormittal, Project Exosun. 66 tilting structures, each carrying four 16 m2 collectors, follow the sun from morning to evening and maximize the heat production.
The project was developed and financed by NewHeat and Savosolar acted as the EPC contractor. Meaning, Savosolar designed the whole system, delivered the solar collectors, and realized the installation with local French companies. This installation will be a reference for the huge growing market of heat-as-a-service for industrial clients in France and world-wide.
With a size over 13,000 m2, this system is the second largest solar heating system in France and the second largest solar thermal system for industrial process heating in Europe. Savosolar has delivered the largest part of the whole solar thermal plant including the solar collector field, civil work, piping and design and delivery of heat exchange station.
Kyotherm and its affiliate Kyotherm Solar are investment companies which specialize in the third-party financing of renewable heat and energy efficiency projects. Kyotherm Solar is selling heat from this system to a malt drying factory, which is operated by Malteries Franco-Suisses.
Savosolar was happy to sign its so far largest delivery contract with Grenaa Varmeværk in 2018. Savosolar’s highly efficient Savo 15 premium collectors are installed right next to an existing solar collector field which had been commissioned in 2014.
In this turn-key project Savosolar acts as the main contractor enlarging the solar fraction of the district heating network. Its operator, Grenaa Varmeværk, is producing about 146,000 MWh of heat per year. By using solar thermal it has managed to keep their customers´ heat price among the lowest in the whole of Denmark.
The new solar field with Savosolar collectors will increase the overall solar yield and ensure lowest energy production costs also in the future.
